CIVAN 3/12

This product is pick-up only. Call the store for a freight shipping quote.

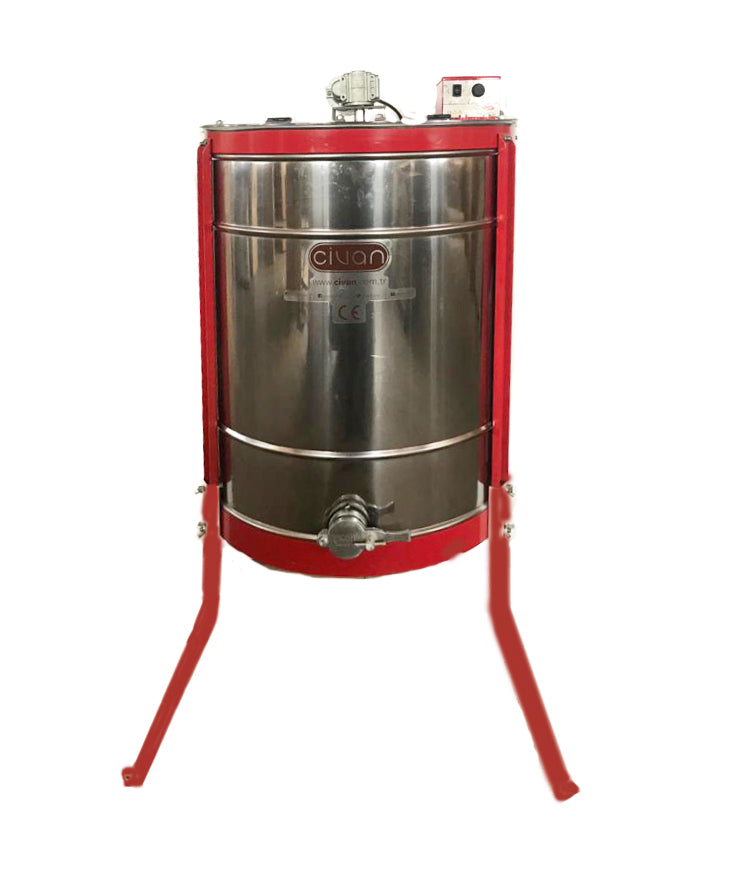

CIVAN 174A Civan 3/12 Frame Electric Extractor

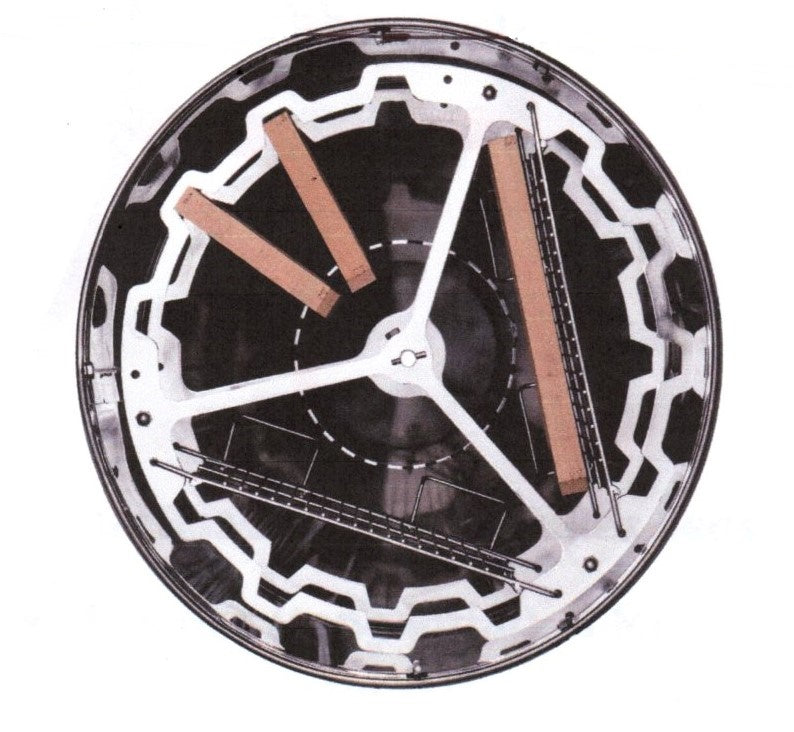

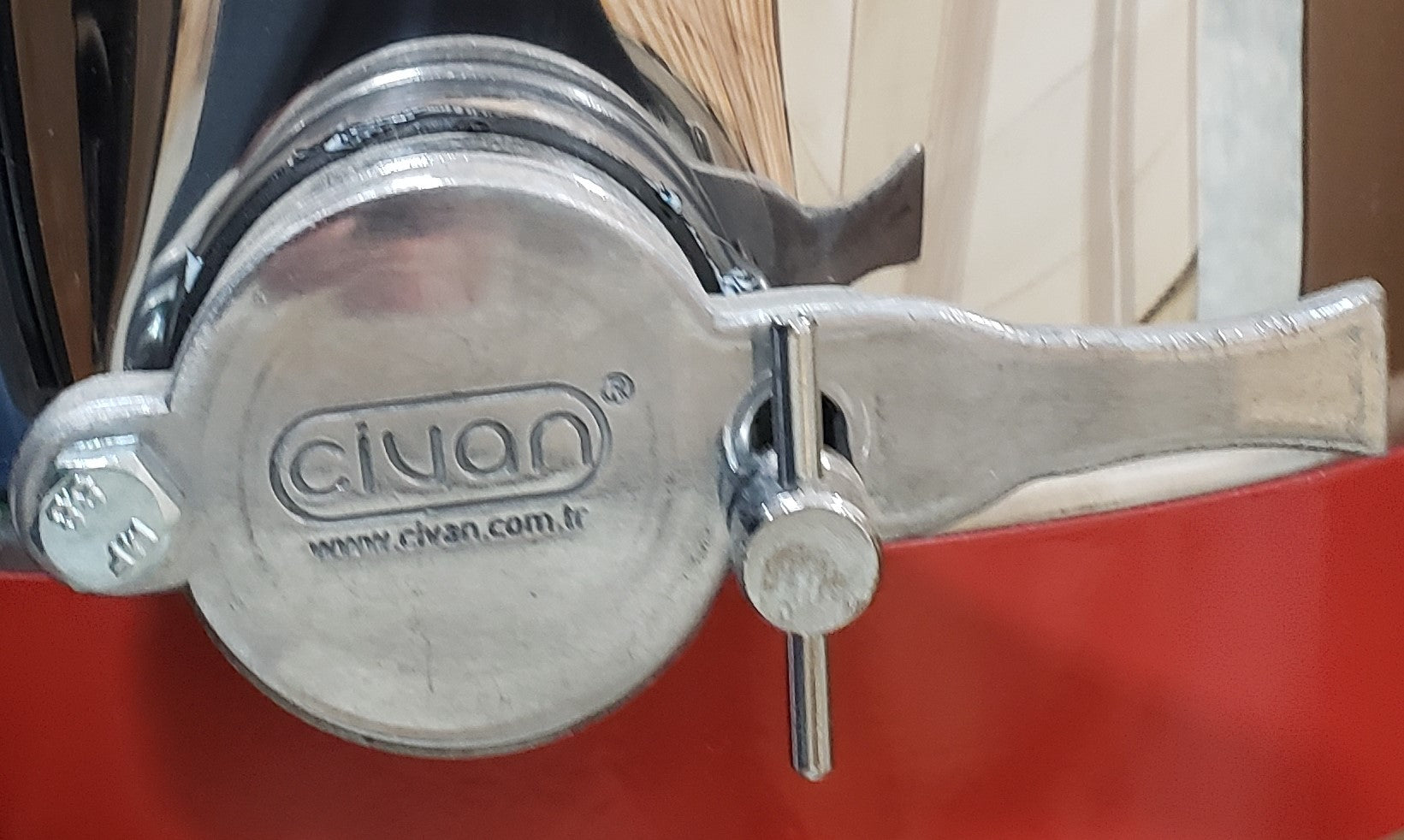

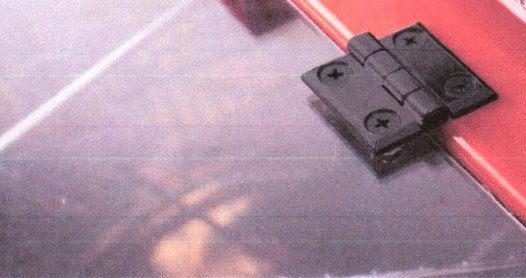

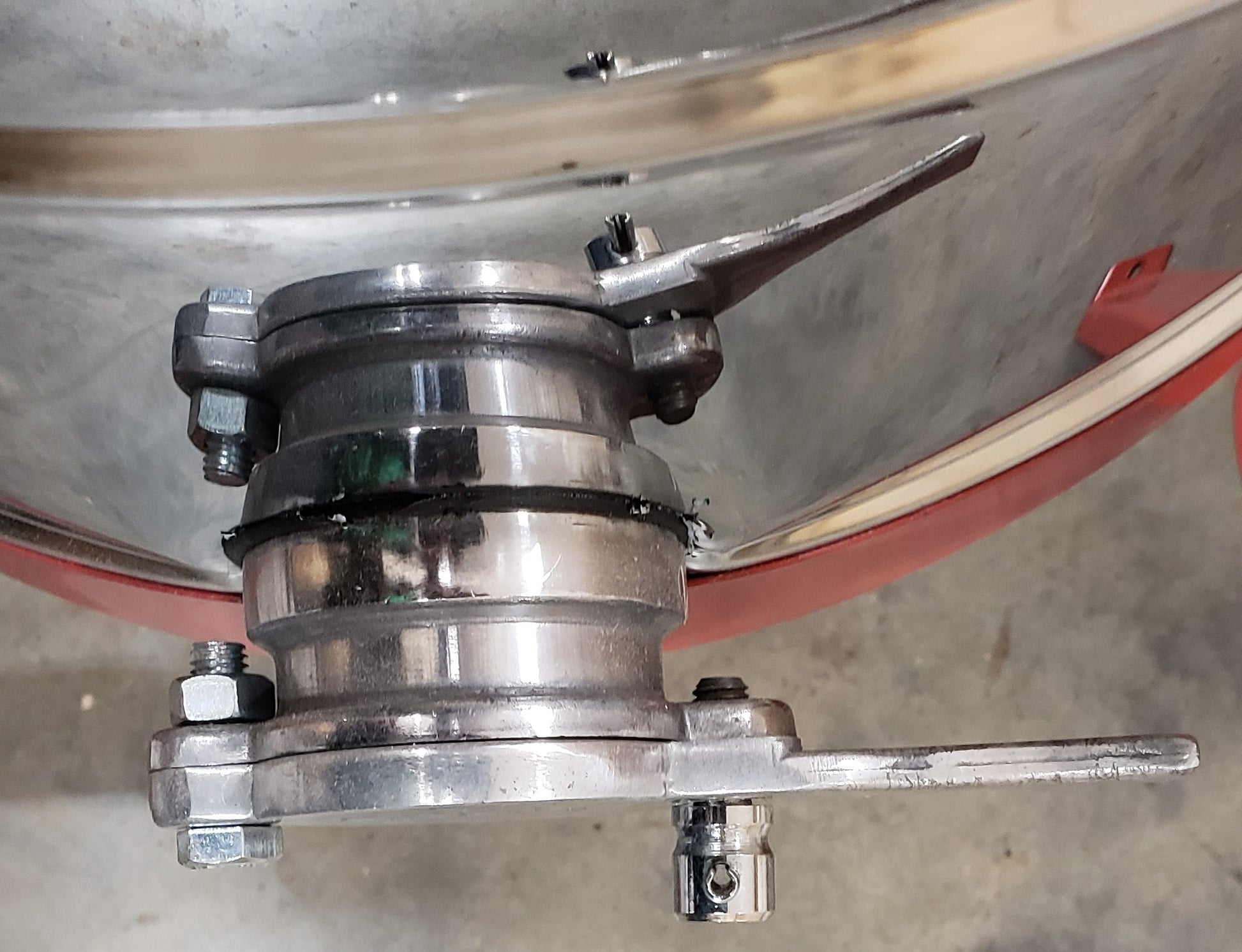

This extractor is designed to be both a tangential and radial extractor. The basket will securely hold 12 medium or shallow frames radially, or it can hold 3 deep frames tangentially. When extracting deep frames, the 3 included deep frame holders slid into the basket without any necessary tools. These baskets are removed to extract medium or shallow frames. At the bottom of the drum is a stainless-steel honey gate with an O-ring and thumb screw for allowing liquid honey out of the drum. Other features include a plexiglass top for watching the extraction process, heavy-duty powder-coated legs, no tools required for assembly, a standard 6 ft. 110 power cord, and an easy-to-clean finish. The legs extend from the ground with a broad base that can be mounted to the ground or a platform to the top of the extractor for minimal wobbling while extracting. Specifications: Drum diameter 22 inches, Total height: 45 inches. Total weight: 63-lbs 21 Gauge Stainless Steel with 304 Stainless Steel Height to bottom of gate 14 1/2-inches Hand Crank model comes with a stainless steel basket that holds 3 Deep / 12 Medium / 12 Shallow radially, includes legs and a stainless steel honey gate Electric model comes with a stainless steel basket holds 3 Deep / 12 Medium /12 Shallow  Radially, Includes legs and a stainless Steel honey gate.
